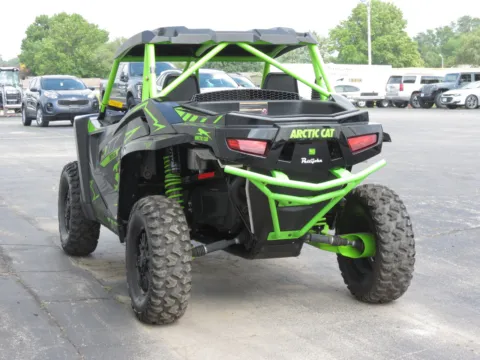

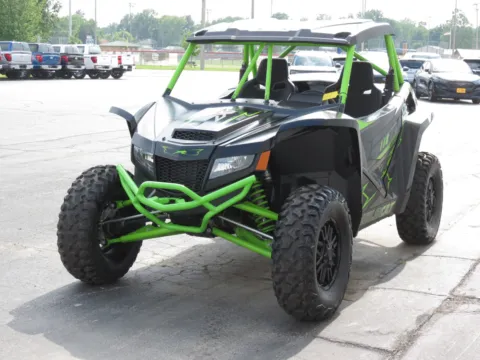

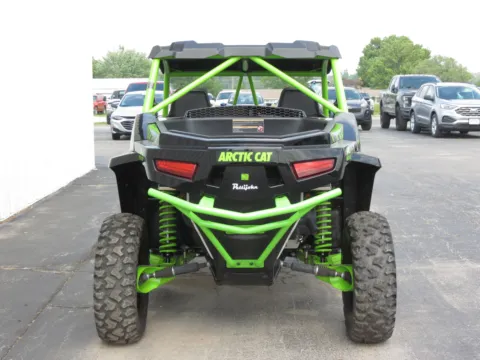

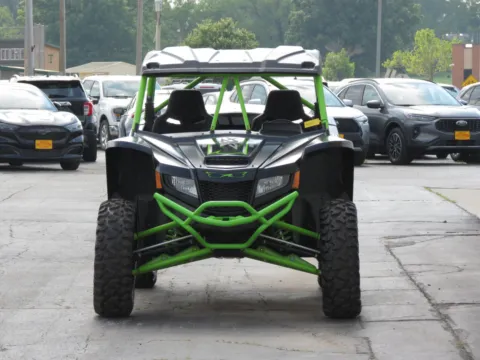

2024 ARCTIC CAT WILDCAT XX LTD

WILDCAT XX

High Octane Thrills Await

If you'll want to take on some of the toughest trails, you'll need the best of the best. You want a side-by-side built for challenging climbs and the tricky terrains, with the Wildcat XX you'll get just that

• 130 HP engine
• ADAPT CVT System
• Color matched suspension

Vehicle Features:

OFF-ROAD RACING INSPIRED SUSPENSION SYSTEM -

Utilizing a unique suspension inspired by off road racing, an optimized transaxle an premium FOX 2.5 PODIUM QS3 shocks with bottom-out control, the Wildcat XX is able to gain more traction and offer a more stable ride every time

RACE WORTHY POWER -- CLASS-LEADING 130 HP ENGINE -

Equipped with a class-leading 998c, three cylinder, 4-stroke EFI engine producing 130 HP, the Wildcat XX is built to push the limits. The powerful DOHC engine allows for better airflow with fewer obstructions and offers more efficient, consistent performance. With power like this, prepare or exhilaration.

ADAPT CVT CLUTCH -

New drive and driven clutches are lighter-weight and employ a compact design with advanced idler system. ADAPT maintains constant belt tension throughout the RPM range resulting in minimized wear, maximum throttle response and longer belt life for your Wildcat XX. Plus, the dual CVT air intake will keep your belt cool to extend its life even further

KEEP YOUR GRIP WITH PREMIUM TIRES AND WHEELS -

Equipped with 30-in Behemoth tires, the Wildcat XX is designed to keep hold as you navigate all kinds of terrains. With 15-in custom wheels, this side-by-side offers 15-in of ground clearance and plenty of traction when you hit the trails.

Vehicle Specs -

ENGINE AND DRIVETRAIN:

Engine Type - Liquid-Cooled, 3 Cylinder

Horsepower - 130 HP

Displacement - 998 cc

Drive Train - ADAPT CVT

Drive System - 2 WD / 4 WD Electric Actuation, with Selectable Front Diff Lock

Fuel System - EFI (electronic fuel injection)

Gear Selection - H / L / N/ / R / P

Front Differential - 2WD / 4 WD Selectable locker

Rear Differential - Locked

STEERING & SUSPENSION:

Steering - Electronic Power Steering

Front Suspension - Double A-Arm with 18-inch Travel

Rear Suspension - Trailing Arm with 18 in

Shock Absorbers - Fox 2.5 PODIUM QS3 with Compression Adjustment (Front) Fox 2.5 PODIUM QS3 with compression adjustment and bottom-out control

Brake System - 4 Wheel Hydraulic Disc, Dual Piston Caliper Front, Single Piston Caliper Rear

Parking Brake - 4 Wheel Hydraulic Disc, Dual Piston Caliper Front, Single Piston Caliper Rear

Parking Brake - Park in Transmission

Front Tires - CST Behemoth / 30 x 10 - 15

Rear Tires - CST Behemoth / 30 x 10 - 15

Wheels - 15" aluminum

PERFORMANCE:

Total Capacity - 730 lbs

Bed Capacity - 300 lbs

ELECTRICAL:

Alternator (electrical charging system) - 470 watt startor and 65 amp alternator

Accessory Connection System - Pre-wired connections for up to 8 accessories ( 4 switch & 4 key on)

DIMENSIONS:

Overall Length - 136 in

Overall Width - 64 in

Overall Height -67.5 in

Overall Weight - 1816 lbs

Wheelbase - 95 in

Ground Clearance - 15 in

Fuel Capacity - 10 gallons

Hitch - not equipped

Glove box capacity - 4 gallons

Bed Dimensions ( L x W x H ) - 34 x 32 x 9 in

FEATURES:

Skid Plate - Full Length - 2 Piece

Standard Instrumentation - Multifunction Digital Gauge

Lighting - Halogen with LED accent, Dual LED Tail Lights

Start Method - Electric Start

Seating - Stitched, Two Tone, Contoured Bucket Seats, 3 Point Seat Belts

Storage Components - Cargo bed, Glove Box

Additional Features - Standard full doors, race inspired ROPS with front and rear instrumentation bars

Standard Accessories - Color-matched suspension
