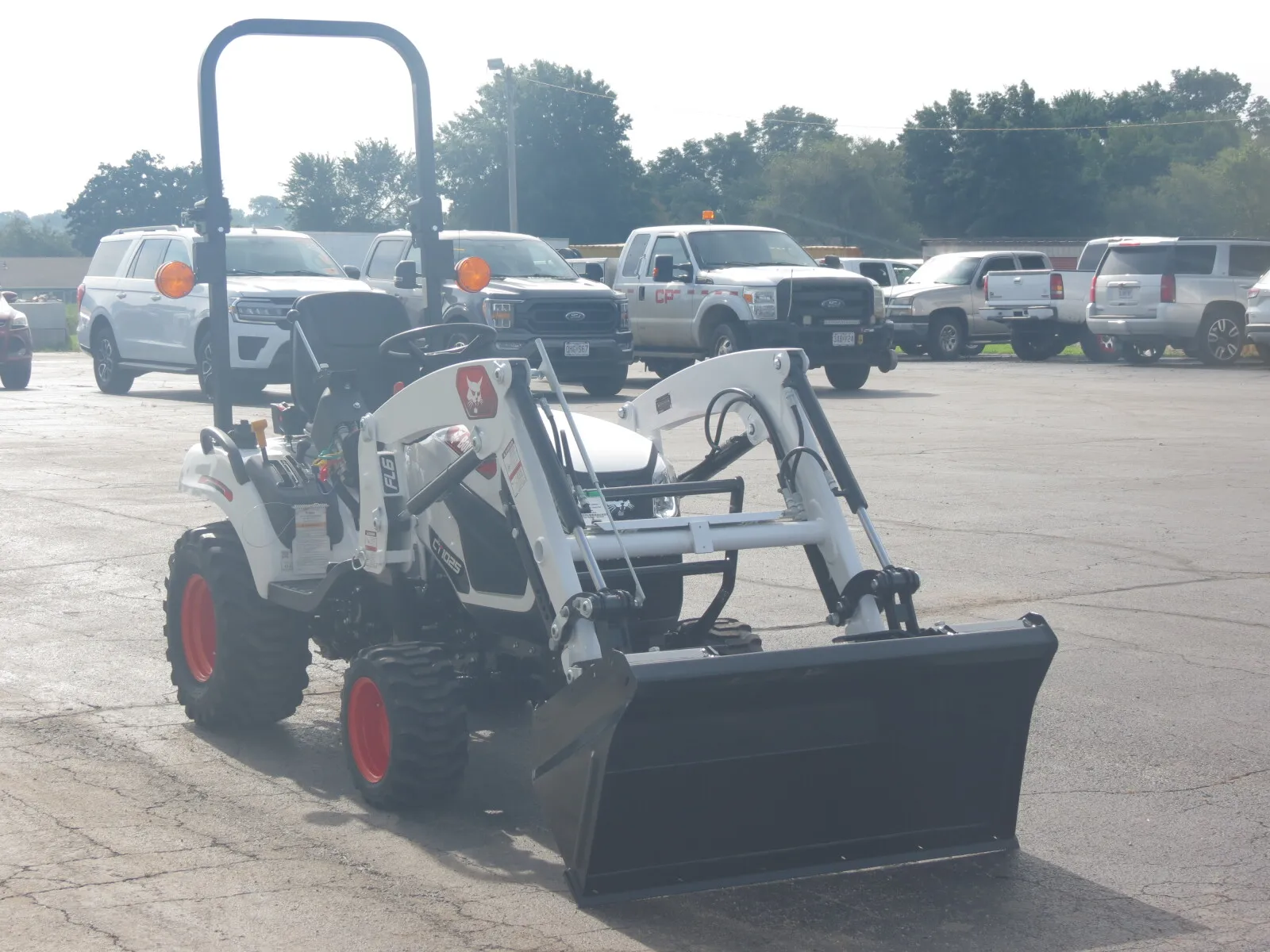

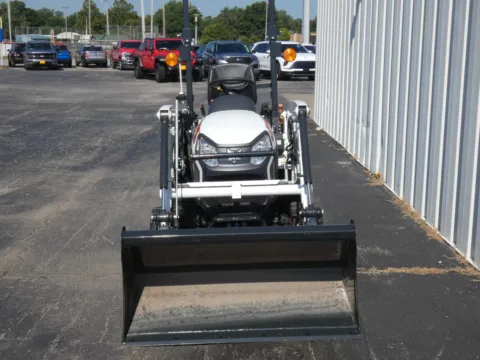

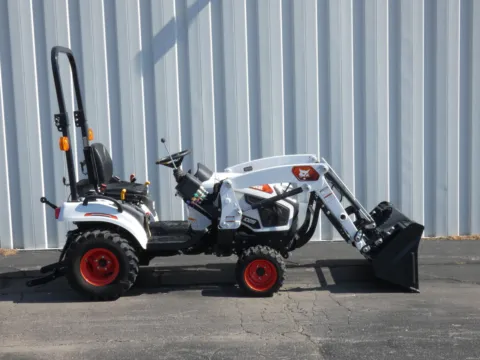

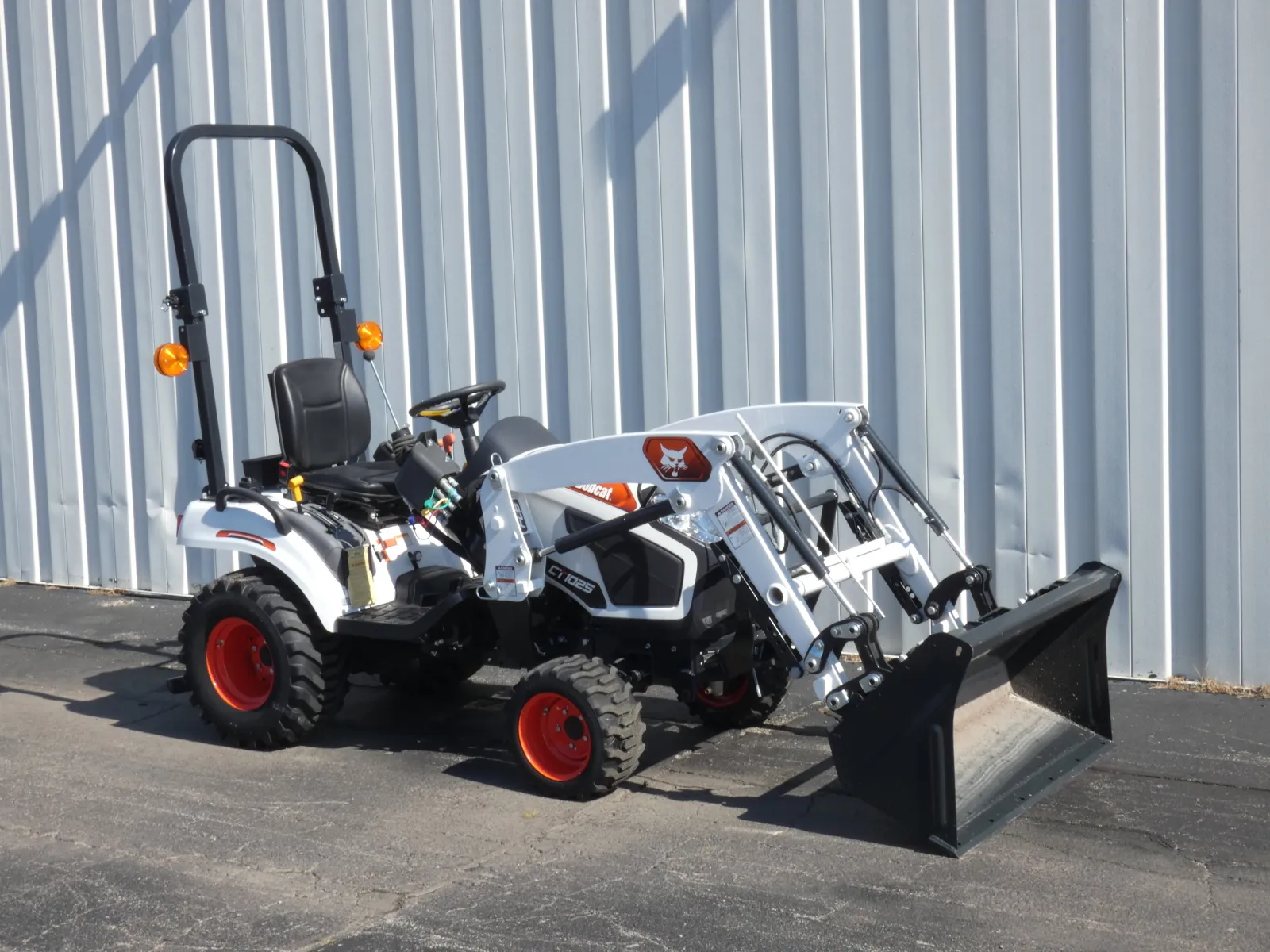

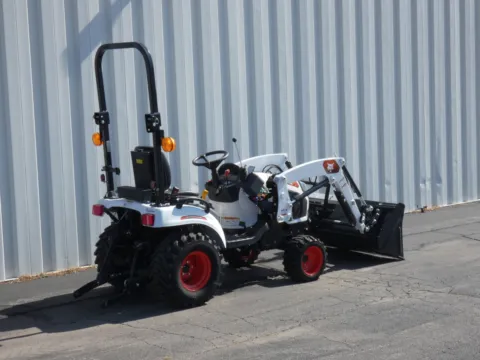

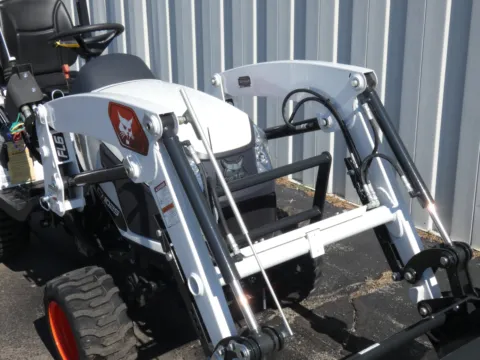

2025 BOBCAT CT1025

CT1025 SUB-COMPACT TRACTORS

This 25 hp sub-compact tractor offers four-wheel drive and clutch-free 2-range hydrostatic transmission

• compact 46 inch width
• limited category 1 three-point hitch for using implements
• rear and mid PTO

CT1025 Overview -

• Great added horsepower for operating a variety of attachments and implements - without sacrificing the compact size of maneuverability
• Mid-PTO provides the option of combining two tools on one machine - one in the back and either one in the front or a mid-mount mower
• Do more with one machine. The rear PTO and limited category 1 three-point hitch allows the versatility to use both drag-behind and PTO powered implements
• Engage four-wheel drive for hard working traction when your work demands it

Vehicle Specs -

KEY SPECIFICATIONS:

Horsepower - 24.5 hp

Lift Capacity at 24" behind Lift Point - 700 lbs

PTO HP - 18.8 hp

Width - 45.7 in

Turning Radius - 8.4 ft

Transmission Type - Infinite, 2 range hydrostatic

ENGINE:

Engine Model - 3C100LFH-U1

Horsepower - 24.5 hp

Gross HP - 24.5 HP

Displacement - 61.5 cubic inches

RPM - 3200

Number of Cylinders - 3

PERFORMANCE:

Operating Weight - 1521 lbs

Travel Speed - 11.1 mph

Travel Speed Reverse - 7.6 mph

3-pt Lift Control Type - Hydraulic Position Control System

Lift Capacity at 24" behind Lift Point - 700 lbs

Rera PTO RPM - 540

PTO HP - 18.8 hp

Mid PTO RPM - 2200

CAPACITIES:

Fuel Tank - 6.7 gallons

HYDRAULIC SYSTEM:

Total Hydraulic Flow - 7.2 gpm

DIMENSIONS:

Length - 99.3 in

Width - 45.7 in

Height - 87.6 inches

Ground Clearance - 6.3 inches

Turning Radius - 8.4 ft

Wheelbase - 55.1 in

Front Tire Size - Front Industrial (AG, Turf) 18X8.5-10 (18X8.5-10, 18X8.5-10)

Rear Tire Size - Rear Industrial (AG, Turf) 26X12-12 (26X12-12,26X12-12)

DRIVE SYSTEM:

Brake System - Wet Multi Disc

Transmission Type - Infinite, 2 Range Hydrostatic
